AutoTime │ stride80 Time Clock

AutoTime Hardware

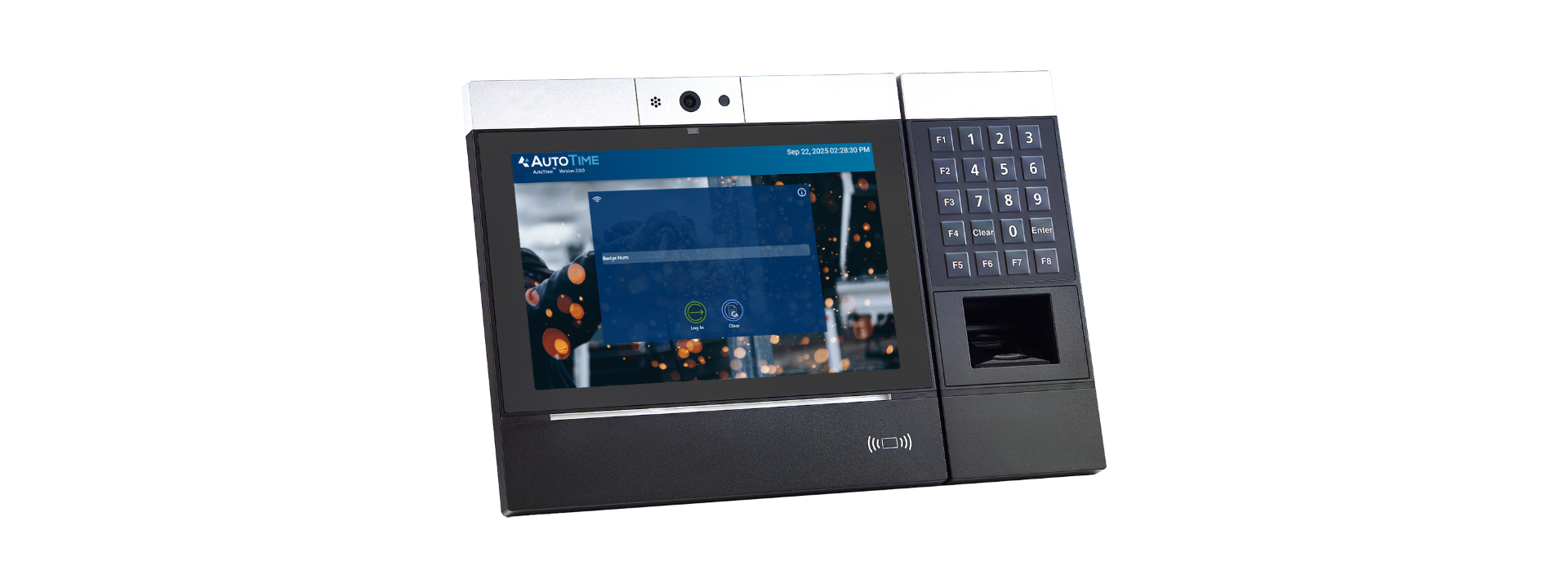

stride®80 time clock

Purpose-built for mission-critical labor environments — capturing accurate, reliable data that streamlines payroll, optimizes labor costs, and powers confident, audit-ready operations.

Book a Discovery Call View Specifications

Precision Time Tracking, Simplified

The clock of choice for leaders who won't compromise.

The stride80 is built for organizations that refuse to compromise on compliance, labor control, or workforce accountability. With flexible clock-in options, contactless verification, and a reliable connection engineered to last, it makes complex labor management and cost control easier than ever — right at the point where work happens.

Key Features

Engineered for the floor.

8″ easy-to-use touch display

Flexible clock-in options

Quick, contactless verification

Reliable connection

Built to last

Flexible Clock-in Options

Every worker, every method, one terminal.

Proximity card reader

Tap-to-clock with low- or high-frequency proximity badges.

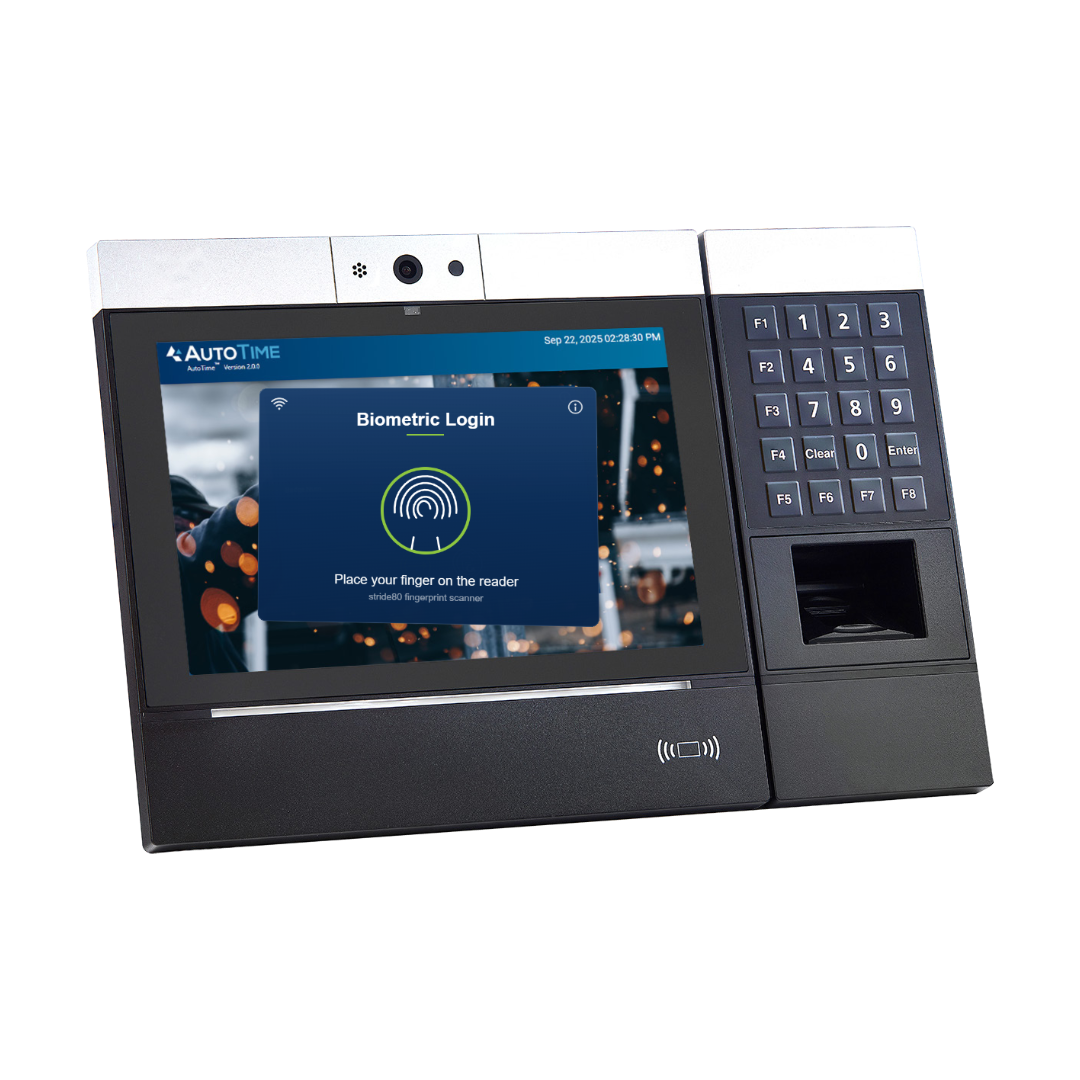

Fingerprint biometric & keypad

Secure 1:1 or 1:N fingerprint identification with optional keypad entry.

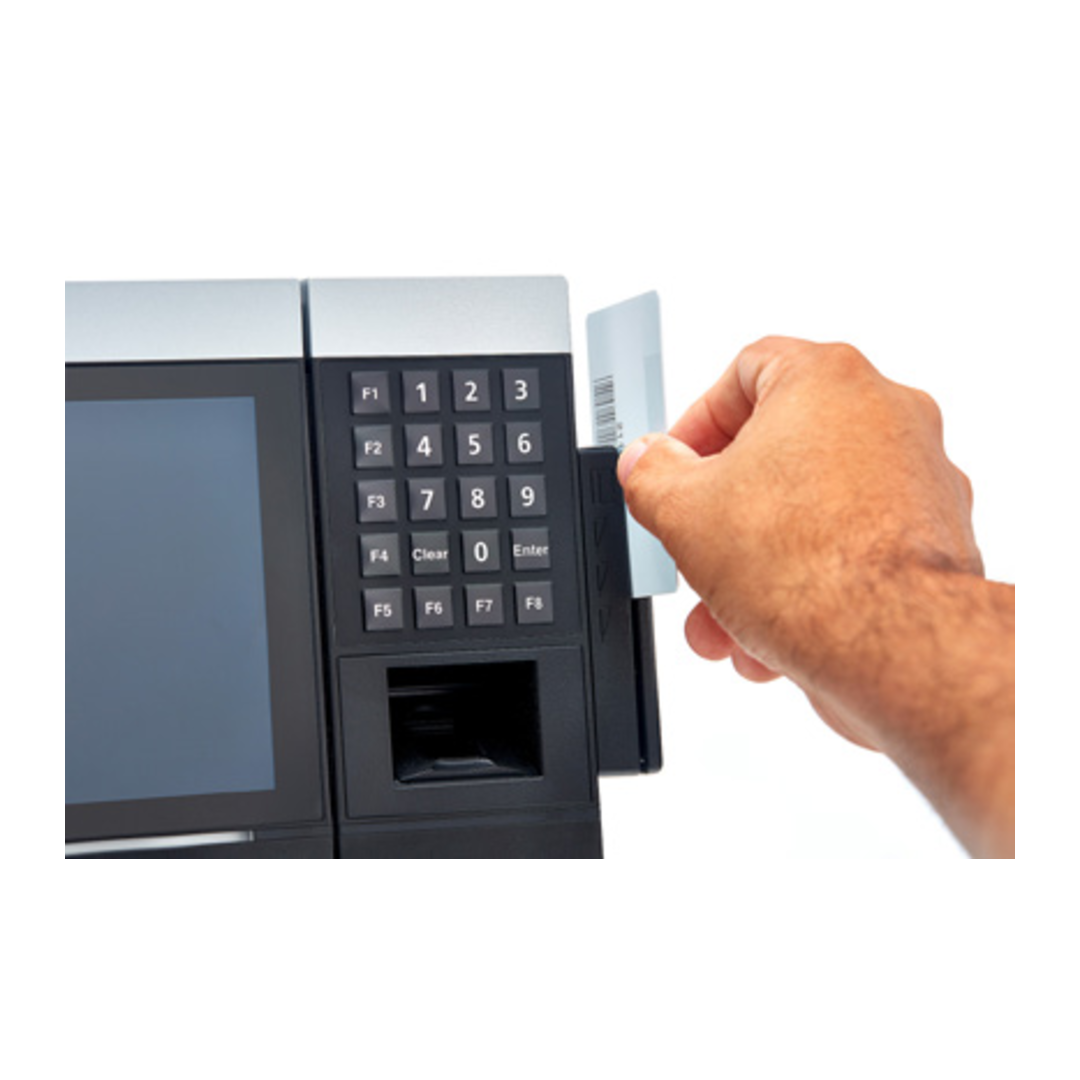

Swipe card reader

Magnetic stripe (Track 2) badge support for existing card stock.

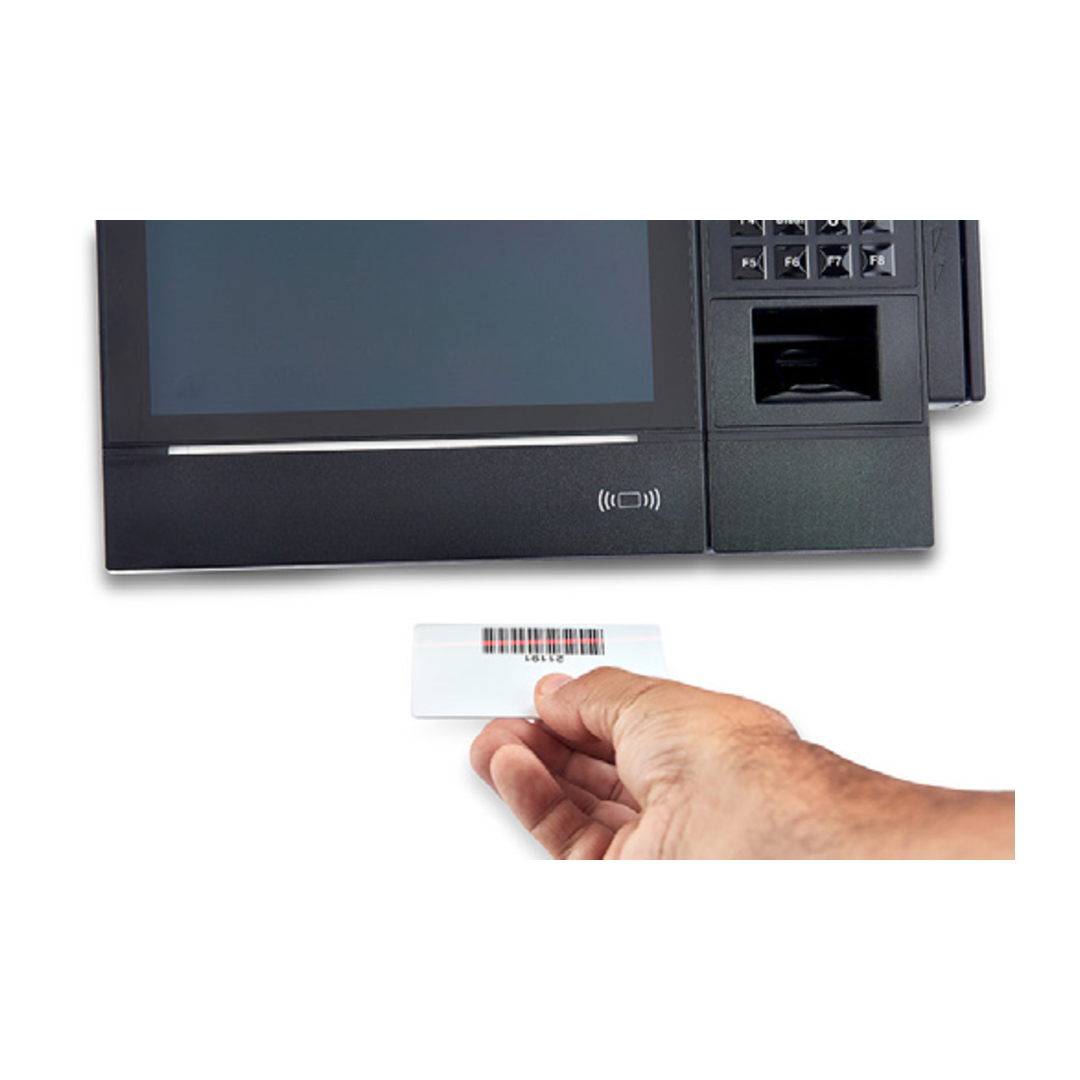

LED barcode scanner

Visible-red-light scanning for badge and job barcodes.

Technical Specifications

stride®80 terminal specifications

User Interface

8″ capacitive multi-touch color screen

Software-controllable multicolor LED indicator bar

Microphone and 1 speaker

Presence sensor

Optional Keypad

20 keys: 0–9, F1–F6, Clear and Enter

Memory

2GB

Mass Storage

16GB, of which 10GB are user-available

Processor

Quad-Core A7, 1.1GHz

Communications

10/100 Base-T Ethernet with DHCP, static IP address

WiFi — 2.4Gbit/s, 802.11 b/g/n

Optional GSM

4G GSM modem

Dimensions

Base Model

8.98″ W × 7.69″ H × 3.13″ D
228.2mm × 195.3mm × 79.6mm

XL Model

12.17″ W × 7.69″ H × 3.13″ D
309.0mm × 195.3mm × 79.6mm

Mag-swipe add-on

1.16″ × 3.74″ × 1.34″
29.47mm × 96mm × 34.04mm

Power

12V DC, 30W output — terminal consumption under 30 watts

Optional PoE

PoE IEEE 802.3at (30W, PoE+)

Optional Battery

Li-ion | 8.4V @ 2600mAh — up to 1 hour of operation

Environment

Operating Temperature

Without battery backup: 0°–50°C (32°–122°F)
With battery backup: 0°–34°C (32°–93.2°F)

Supported readers & card technologies

Optional Barcode reader

Visible red light

Optional Biometric readers

Suprema USB capacitive or optical 1:N — 5,000 templates
Suprema USB capacitive or optical 1:1 — 50,000+ templates

Optional Proximity readers

Low frequency (125KHz): HID Prox, Marin
High frequency (13.56MHz): HID iClass SE, MiFare

Optional Mag-swipe reader

Track 2

FAQ

Frequently asked questions.

What OS does it run?

The Stride80 timeclock is powered by a configurable Android system, enabling companies to port and run custom apps directly on the terminal.

What authentication methods are available?

You can equip the device with a fingerprint reader or traditional badge readers (RFID/Proximity) and digital PIN pads are also supported.

Does it preserve screen privacy?

The unit features a built-in presence sensor. When an employee steps away, the screen goes dark to prevent others from seeing private information and wakes up when someone approaches.

What happens if it loses internet?

The terminal will locally encrypt and store your employees' time punches. It automatically syncs all data to AutoTime application once network connectivity is restored.

Empower your workforce time tracking with purpose-built precision.

See the stride80 in action and learn how it fits into your DCAA-compliant labor tracking environment.

Book a Discovery Call Get In Touch

Call 1-855-717-2817 · info@autotimesolutions.com
